Product Details:
Payment & Shipping Terms:
|
| Product Name: | Energy Saving Poultry Livestock Chicken Feed Production Line For Pellets | Capacity: | 2-5t/h |
|---|---|---|---|
| Type: | Feed Pellet Machine | Motor: | Electric Motor |
| Power(w): | 37kw | Material: | Material Stainless Steel |
| Pellet Size: | 1-8mm | Voltage: | 380V,Customer's Requirement |
| High Light: | 37kw Chicken Feed Production Line,5tph Chicken Feed Production Line,2tph poultry grinder machine |
||
Energy Saving Poultry Livestock Chicken Feed Production Line For Pellets
Product description of chicken feed production line
Nowadays, the intensive management of the chicken breeding industry can save costs and improve efficiency. How to produce high-quality feed and how to make animals digest the feed effectively is a problem that chicken farmers have been paying attention to. We have developed a complete chicken feed production line with the goal of providing chickens with a healthy, nutritionally balanced and easy-to-digest diet.
Compared with feed mash or traditional feed, the pellets produced by the chicken feed production line are cleaner, healthier and easier to transport. Feed pellets can provide concentrated nutrition for livestock. Due to these advantages, chicken feed production lines have become more and more popular in recent years. Zhengzhou Shenghong Heavy Industry Technology Co., Ltd. can make durable chicken feed production lines with glossy surface for you.

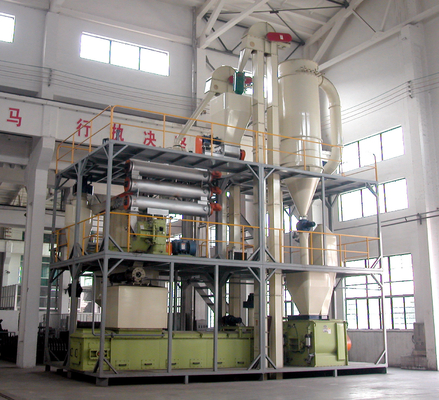

The chicken feed production line is mainly composed of: crusher, mixer, ring mold chicken feed pelletizer, feed pellet crusher, feed pellet cooler.
1. Gear directly-connecting driving is adopted for high efficiency;
2. Full stainless steel feeder; variable pitch anti-bridgng structre; Imported FC control;
3. LL stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;
4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; smooth driving, low noise and long service life;
5. Gearbox and driving holes' accuracy are guaranteed by specialized casting supplier and NCC;
6. The bearing and oil seal in the main drive are imported, and especially lubrication oil return system is available to ensure reliable bearing lubrication;
7. 2 pc quick disassembling type precisely-cast die clamp is adopted to connect the die and quill flange, resulting in convenient and quick disassembling of die;
8. Pellet chamber door and feed chute are fully made of stainless steel wit high anti-corrosion ability and long service life;
9. The connection between motor and gearbox adopts new type S-shape spring coupling wth more convenient disassembling and assembling and more reliable use.
Flowchart of chicken feed production line:
1. Raw material cleaning
Receive bulk raw material corn and soybean meal; the cleaning process is to pass the corn and soybean meal that passed the inspection by the raw material inspector into all the operation units of the silo. In this process, the impurity removal equipment is first used to remove the impurities in the raw materials, and then the receiving equipment and demagnetization equipment are transported to the silo as planned. The production line equipment includes receiving devices (such as unloading pits, platforms, etc.), conveying equipment, primary cleaning screens, and magnetic separation devices (such as permanent magnet drums, permanent magnet drums, etc.). For the receipt of bagged raw materials, it means that the loading and unloading personnel unload the raw materials that have passed the inspection by the raw material inspector and store them neatly in the warehouse. Four points must be taken in the receiving process: 1. Accurately count the quantity; 2. The raw materials have no quality problems; 3. The receiving route is correct; 4. The receiving environment is clean.
2. Batching process
The batching process is to weigh the raw materials in the batching bin from the feeder under each batching bin to the batching according to the formula requirements. After each raw material is weighed by the batching scale, the raw material is transported to the powder storage bin. The ingredients are weighed out from the silo, these weighed raw materials enter the powder silo, and a small amount of materials and premix are directly added to the silo for manual weighing and mixed. The quality of the batching process directly affects the accuracy of product batching.
3. Crushing process
The crushing process refers to sending the raw materials to be crushed in the silo to the crusher to be pulverized into powder, and then sent to the silo to be mixed by a conveyor for use. The purpose of this process is to control the particle size of the material. The design efficiency of the crusher in this process determines the capacity of the process equipment, and it is also the process with the largest energy consumption in the production of powdered materials. Monitor and confirm the hammer, sieve, current, noise and crushing path at any time.
4. Mixing process
In the mixing process, the crushed various raw materials are discharged from the mixing bin into the mixer, and grease is added to the feed in the mixer through the liquid adding system as needed to make the components mix uniformly to achieve the desired mixing effect. Uniformity. The material discharged from the mixer is the finished product, which is directly sent to the packaging process of the finished product for packaging and leaving the factory. In the production of pellet feed, the mixed powder is sent to the silo for pelleting. In order to ensure the efficiency of the mixer, maintenance personnel must regularly check and repair the equipment, and regularly test the efficiency of the mixer.
5. Granulation process
The mixed materials are transferred from the granulation bin to the compression chamber of the granulator after magnetic separation and conditioning, and compressed into granular feed, cooled by the cooling tower, and sieved by the screening equipment to obtain standard granules. The magnetic separation equipment must be cleaned regularly to prevent iron impurities from damaging the granulator. During quenching and tempering, the amount of steam should be adjusted according to the requirements of the particle type, and the ring die (aperture, compression ratio, material, etc.) should be selected according to the requirements of the particle process quality. The cooling tower should be adjusted according to the variety, indoor temperature and humidity, season and other factors during cooling, so as to reach the qualified level. Particle temperature and humidity. Adjust the cooling tower to reach the qualified particle temperature and humidity according to the variety, indoor temperature and humidity, season and other factors.
6.Finished product packaging process
The feed is weighed from the finished product warehouse by a packaging scale, put into the packaging bag, and then the label is inserted and sealed by the packer, and then transported to the warehouse by the transport truck for stacking.
Parameter of chicken feed production line
Our after-sales Service:
1). We can provide you the one year warranty of pellet machine animal feed animal feed production machine but without the spare parts.
2). The professional and timely 24 hours after-sale service for animal feed machinery
3). The relative video of the animal feed production machine installation and instruction will be provided for you.
4). We can provide you the different mould of animal feed mixer machine to meet your different requirements.
5). We can also meet the special voltage demand of animal feed pallet machine about poultry feeding machine price,
6). The engineer is available to service feed pellet machine animal oversea for straw crusher/animal feed machinery.
