Product Details:
Payment & Shipping Terms:
|
| Applicable Industries:: | Manufacturing Plant, Farms, Feed Factory | Power: | 110kw |
|---|---|---|---|
| Function: | Aniaml Feed Machine | Key Selling Points: | High Productivity |
| Color:: | Custom Made | Condition: | New |
| High Light: | 10TPH Animal Feed Extruder Machine,Custom Animal Feed Extruder Machine,10TPH pellet machine for cattle feed |
||

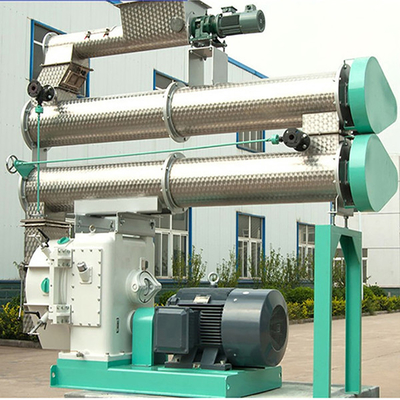

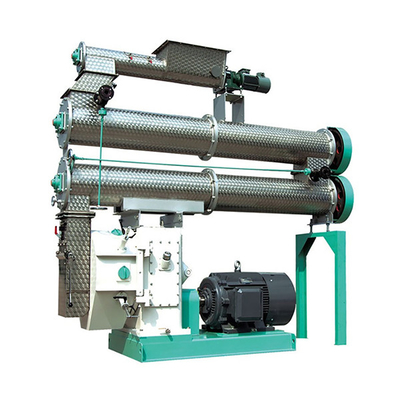

10t/h Animal Feed Extruder Machine manufacturer
Introduce:
1. Gear directly-connecting driving is adopted for high efficiency;
2. Full stainless steel feeder; variable pitch anti-bridging structure; Imported FC control;
3. LL stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;
4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; smooth driving, low noise and long service life;
5. Gearbox and driving holes' accuracy are guaranteed by specialized casting supplier;
6. The bearing and oil seal in the main drive are imported, and especially lubrication oil return system is available to ensure reliable bearing lubrication;
7. 2 pc quick disassembling type precisely-cast die clamp is adopted to connect the die and quill flange, resulting in convenient and quick disassembling of die;
8. Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and long service life;
9. The connection between motor and gearbox adopts new type S-shape spring coupling with more convenient disassembling and assembling and more reliable use.
Parameter of animal feed extruder
|
Model |
SZLH250 |
SZLH320 |
SZLH350 |
SZLH420 |
SZLH508 |
|
Power(KW) |
22 |
37 |
55 |
110 |
160 |
|
Capacity(T/H) |
1 |
2-4 |
5-7 |
8-10 |
15-20 |
|
Inner dia(mm) |
250 |
320 |
350 |
420 |
508 |
|
Pellet size(mm) |
2-8 |
2-8 |
2-18 |
2-18 |
2-18 |
How to Work:
SZLH Feed Pellet Machine Equipped with conditioner, this pellet machine will steam and soft the material first to kill the bacteria and improve the qualitiy and capacity of final feed pellets.
It has the better raw material versatility, which can be suitable for pelletizing many kinds of raw material, such as corn, broom corn, wheat, beans, oil seed meal and other materials .
Product Feature:
1. Double motor drive system with the ideal transmission ratio, large driving torque, smooth transmission.
2. The VVVF (electromagnetic speed) feeding, is equipped with overload protection device, a magnetic plate iron removing device.
3. The high yield, low noise, convenient operation and maintenance.
4. The main parts of the bearings and the standard parts are imported.
5. With 2-14mm, a variety of ring die size and thickness, the user can choose according to different needs.
Advantages:
1. Wide applicable scope: It can process different materials such as corn, maize, grass, grains, molasses, and some other raw materials.
2. Highly efficient one step gear transmission drive ensures maximum utilization ratio of energy.
3. Full stainless steel feeder; Variable-pitch anti-arch structure; Imported frequency converter control.
4. Stainless steel conditioner extends the conditioning and cooking time. Axial steam spraying port, improving feed cooking efficiency.
5. High precision driving main gear and pinion shaft adopt the carbonizing quenching and hard tooth surface grinding technology, resulting in smooth driving, low noise and long service life.
6. Capacity: We can customize the different capacities from 1 ton per hour to 50 ton per hour or even more.
7. After-sale guarantee: One year warranty and all round after sale service
8. Gearbox: with pinion shaft, main gear, main shaft, quill shaft, gearbox body, manual lubrication system and overload protection system.
9. Coupling assembly: with hub-taper lock bores, bushing-taper locks, S-shaped grid cover etc.
10. One set of roller assembly---two roller system.
11. Ring die special design for low bulk density pelleting
12. Door made with one knife assembly.
13. Feed chute: External discharging can be carried out by pulling out the external discharging lever arm of feed chute to prevent feed from entering the pellet chamber for the convenience of trial run and breakdown removal
