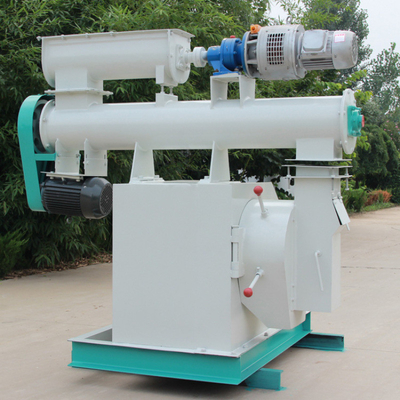

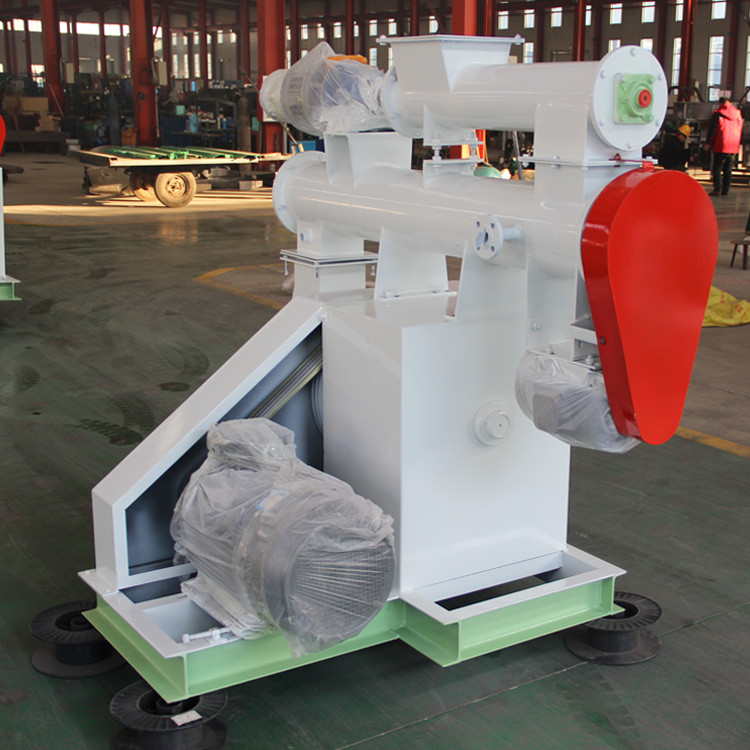

37kw Convenient Cow Goose Feed Pellet Mill Machine 1-3T/H

37kw Convenient Cow Goose Feed Pellet Mill Machine 1-3T/H
37kw Convenient Cow Goose Feed Pellet Mill Machine 1-3T/H 37kw Convenient Cow Goose Feed Pellet Mill Machine 1-3T/H

Large Image :  37kw Convenient Cow Goose Feed Pellet Mill Machine 1-3T/H

Product Details:
Place of Origin: Henan, China
Brand Name: Shenghong
Certification: BV, SGS, ISO9001
Model Number: SZLH320
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 3999-5999
Packaging Details: 20GP, 40GP, 40HQ, plywood packing
Delivery Time: within 15 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Product Name: Animal Feed Pellet Mill Machine For Making Poultry Cow Goose Feeds Capacity: 1-3t/h
Power: 37kw Voltage: 380V/415V/600V
Condition: New Type: Feed Pellet Mill Machine
High Light:

Goose Feed Pellet Mill Machine

,

37kw Feed Pellet Mill Machine

,

OEM 150 feed pellet machine

Animal Feed Pellet Mill Machine For Making Poultry Cow Goose Feeds



Product description of feed pellet mill machine:



The 320 feed pellet mill machine is the main machine for suppressing pellet feed. It is suitable for large and medium-sized feed mills with an hourly output of 2 to 5 tons. It can be used in conjunction with powdered feed mills with an annual output of 5,000 to 10,000 tons.
This feed pellet mill machine has the characteristics of compact structure, beautiful appearance, high output, low power consumption, convenient use and reliable work. In addition, it can be equipped with ring molds with various apertures such as Φ2.5, Φ3, Φ4, Φ5, Φ6, Φ8, Φ10, etc., and users can choose arbitrarily according to different needs. It uses a stepless speed regulating motor for feeding, is equipped with a strong magnetic safety device and an overload protection device, and is designed with an organic external discharge mechanism and a pressurized oil pump lubrication system.


Working process of feed pellet mill machine:



The main components of the pressing chamber of the feed pellet mill machine are composed of a ring die, two press rollers, a feeding scraper, a cutter, and a die roller gap adjustment screw.
The structure and working principle of the pressing room: The feed passes through the ring die cover and the feeding scraper to send the powdered feed to the two pressing areas. The empty shaft drive wheel drives the pressing mold to rotate, and the feed is drawn between the pressing mold and the pressing roller. , The two relative rotating parts gradually squeeze the feed, the feed is squeezed into the ring die hole, formed in the die hole, and continuously extruded to the outer end of the die hole, and then the formed particles are cut into the required length by the cutter. The formation of the particle stream enters the next process.

Technology parameter of feed pellet mill machine:
Model
SZLH250
SZLH320
SZLH350
SZLH420
SZLH508
Power(KW)
22
37
55
110
160
Capacity(T/H)
1
2-4
5-7
8-10
15-20
Inner dia(mm)
250
320
350
420
508
Pellet size(mm)
2-8
2-8
2-18
2-18
2-18



37kw Convenient Cow Goose Feed Pellet Mill Machine 1-3T/H 0

Advantages of feed pellet mill machine:

1. Adopting double-motor V-belt transmission system, stable rotation, low noise, and no need for lubrication.
2. The machine body is small in size, occupies less space, and saves space.
3. There are two types of ring die installation of this machine: ordinary cone type and hoop type.
4. Low operating cost, convenient operation and maintenance.
5. It can be used in the production of livestock and poultry feed, ruminant feed, fish feed and other feeds

37kw Convenient Cow Goose Feed Pellet Mill Machine 1-3T/H 1
