Automatic Poultry Animal Cattle Feed Manufacturing Plant With 3 Tons Per Hour
Product description:
1. The feed is processed by this machine with moderate temperature rise, can well maintain various trace elements in the raw materials, has good palatability, and has a large feed intake by animals, which is conducive to digestion and absorption of various nutrients.
2. The particle composition is uniform, the shape is neat, the surface is smooth, the diameter can be changed between 1.5-6mm (need to change the mold), the length can be adjusted between 5-20mm, and the density of the particles is large, which is convenient for storage and transportation. The needs of planting and breeding objects in different growth periods.
3. Processed fish feed can stay in the water for a long time and improve the utilization rate of feed. Conducive to preventing water pollution.
4. This model has a wide adaptability to materials and can process various full-price compound feeds with different requirements.
Parameter of cattle feed manufacturing plant
| Model |
SZLH250 |
SZLH320 |
SZLH350 |
SZLH420 |
SZLH508 |
| Power(KW) |
22 |
37 |
55 |
110 |
160 |
| Capacity(T/H) |
1 |
2-4 |
5-7 |
8-10 |
15-20 |
| Inner dia(mm) |
250 |
320 |
350 |
420 |
508 |
| Pellet size(mm) |
2-8 |
2-8 |
2-18 |
2-18 |
2-18 |

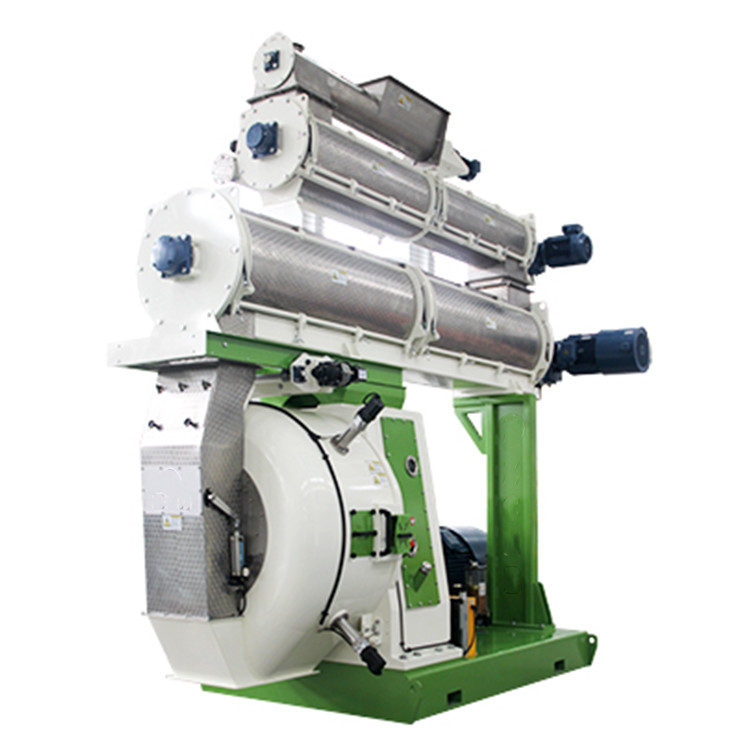

Features of cattle feed manufacturing plant
1. The main drive adopts high-precision gears to drive double rollers, and the ring die adopts a quick-release hoop type, which is about 20% more efficient than the belt drive type.
2. The transmission part of the whole machine adopts high-quality imported bearings and oil seals to ensure transmission, stability and low noise.
3. The international-level compensating serpentine spring coupling has novel structure, compactness, safety, and low failure performance.
4. Impeller feeding mechanism, uniform and reliable feeding, specially designed for pressing various lightweight materials with a specific gravity of 0.3-0.6g/cm3 for granulation;
5. The whole machine is equipped with an overload protection device, which fully considers the protection of the host during use;
6. The speed of the feeding auger is adjustable, which can be suitable for various output requirements;
7. The main transmission adopts high-precision gear transmission, and the ring die adopts a quick-release hoop type, and the output is about 15% higher than that of the belt transmission type;
8. The transmission part of the whole machine adopts Japanese high-quality bearings to ensure transmission, stability and reliability;
9. The alloy steel ring die manufactured with international equipment and technology has long service life, smooth grain output and high quality.
Process and capacity of cattle feed manufacturing plant

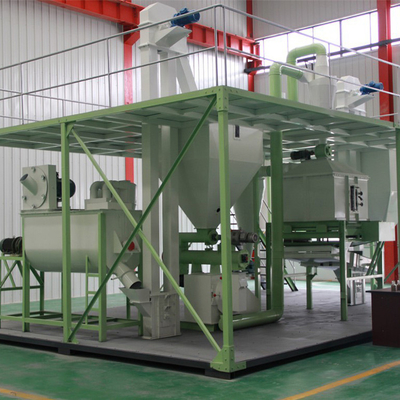

The cattle feed manufacturing plant has a pellet size of 1.5-10 mm, and the supporting power depends on the size of the unit. The technological process consists of computer central control, feeding, lifting, storage, crushing, batching, mixing, granulating, cooling, lifting, and packaging. The technological process is continuous and reasonable. Each single machine has good performance and is easy to operate and maintain.
